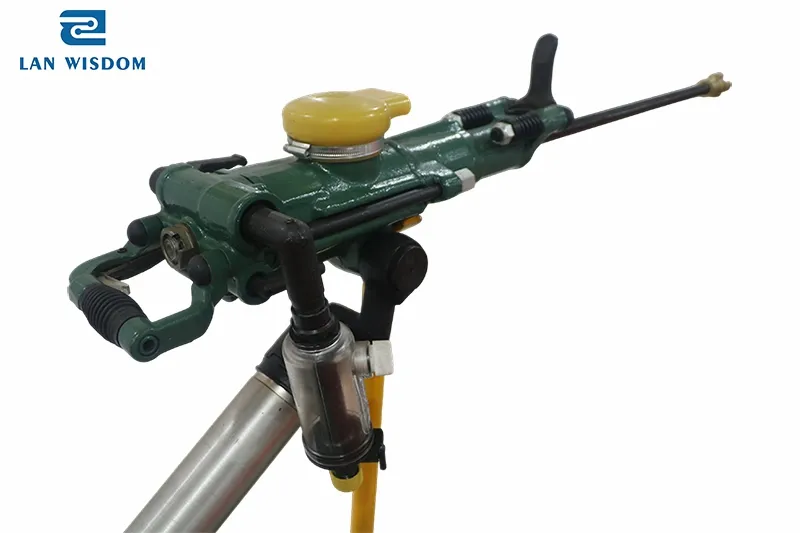

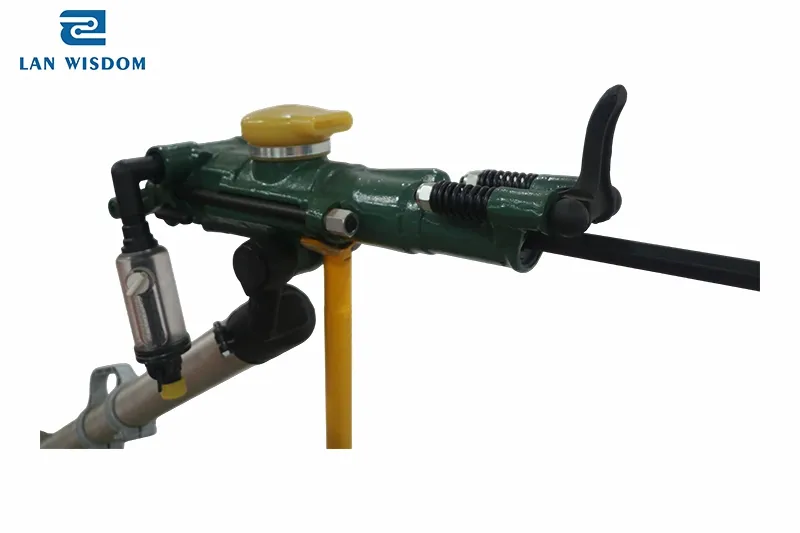

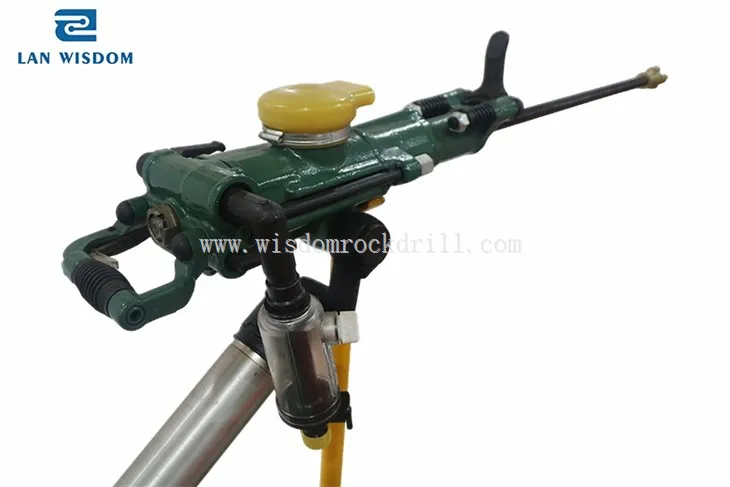

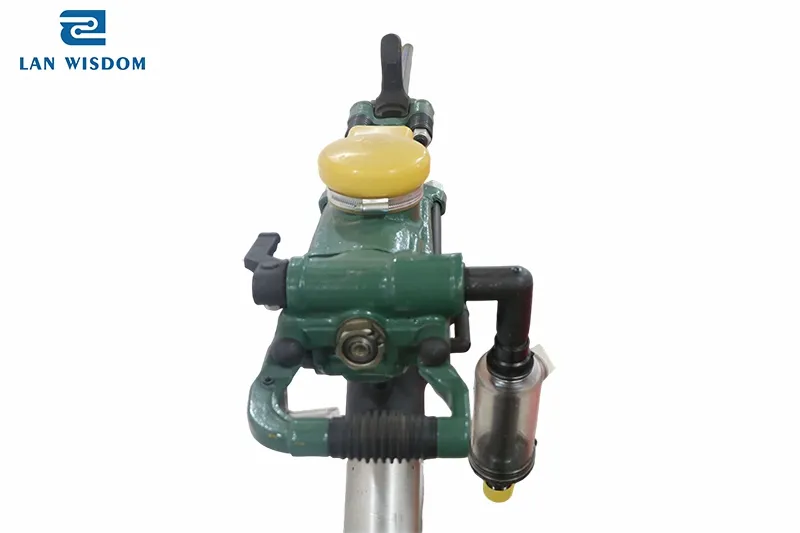

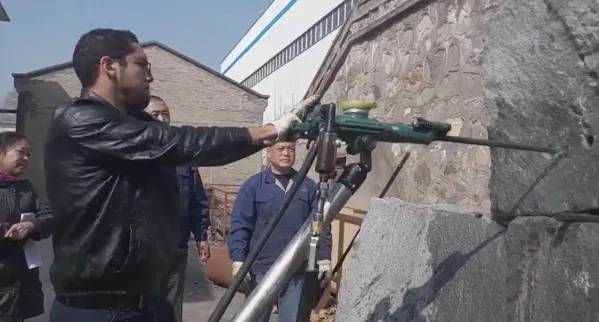

YT28 Rock Drill
●Exceptional Durability:Core components manufactured with heat-treated forging technology extend the service life by 30% compared to standard models.
●Centralized Control System:Features an integrated air-water linkage design for flexible starting. The operating handle is ergonomically integrated with the main body.
●Superior Noise Reduction:Optimized exhaust path design effectively lowers operational noise, improving the underground working environment.
●Expert Quality Control: Each unit undergoes a rigorous 120-minute full-load simulation test, ensuring zero faults upon delivery.
Introduction
The YT28 Rock Drill is currently the most widely used air-leg rock drill in mine support and tunnel excavation. Our factory doesn't just manufacture tools-we address the pain points of underground operations through breakthroughs in materials science.This equipment utilizes an advanced air valve distribution principle, maintaining extremely high impact frequency under working pressures of 0.4-0.63 MPa. Its core components-the piston and rotating sleeve-incorporate unique "vacuum heat treatment" and "surface strengthening technology." This processing ensures precise coordination and minimizes internal leakage even when drilling through high-hardness rocks with F=8-18.When paired with our FT160 air leg, the YT28 delivers the most stable thrust force for both horizontal and inclined drilling operations.
YT28 Specifications
|
Weight |
kg |
26 |
|
L ×W×H |
mm |
661×247×195 |
|
Air pressure |
MPa |
0.63 |
|
Air consumption* |
L/s |
≤ 81 |
|
Impact frequency |
Hz |
≥ 37 |
|
Air hose size |
mm |
25 |
|
Water hose size |
mm |
13 |
|
Bore dia. |
mm |
Φ 34~Φ 42 |
|
Drilling depth |
m |
5 |
|
Shank size(Hex.×L) |
mm |
22*108±1 |
Air-Leg Specifications
|
Model |
|
FT160BC |
FT160BD |
|
Length |
mm |
1800 |
1400 |
|
Feed length |
mm |
1365 |
965 |
|
Weight |
kg |
16.9 |
14.4 |
FY200B Line OileR Specifications
|
Capacity |
ml |
200 |
|
Weight |
kg |
1.02 |
Product Feature And Application
Features:
- Ultra-High Strength Forging:Unlike common cast parts, Lan Wisdom's YT28 cylinder and head are formed through monolithic forging. This process eliminates internal defects such as sand holes and porosity in the metal, ensuring resistance to cracking under long-term high-pressure impact. The service life of these components is over twice that of ordinary cast parts.
- Superior Wear Resistance:The piston surface achieves a hardness of HRC 60–63 and undergoes precision micro-grinding. Paired with a high-quality FY200B lubricator, the friction coefficient is minimized, effectively preventing "burn-in" even during 24-hour continuous operation.
- Optimized Energy Efficiency Ratio:By precisely calculating the opening and closing timing of the air distribution valve, the YT28 achieves a 15% faster drilling speed compared to similar products under the same energy consumption, significantly reducing operational costs for on-site air compressors.
Application:
1. Mining (Metal & Non-metal): Roadway development and mining operations in coal, gold, and iron mines.
2. Transportation Engineering: Pre-lining drilling of holes for railway and highway tunnel secondary lining.
3.Water Conservancy Projects: Dam foundation reinforcement, drainage hole drilling, and quarrying operations.
4.Infrastructure Construction: Urban utility tunnel construction and various rockworks.
5. Block Separation and Production: Drilling series of holes for blasting to separate large blocks of stone (granite, marble, limestone, etc.) in dimension stone quarries or for producing crushed stone.
Production details
The YT28 rock drill features a large cylinder diameter (80 mm) and a short piston stroke design, delivering outstanding performance in medium-hard to hard rock formations (f=8–18). Combined with an optimized air distribution mechanism, it achieves industry-leading performance in drilling depth, impact frequency, and rock-breaking speed, significantly shortening project cycles.
The core components are processed with specialized heat treatment technology, delivering exceptional fatigue strength and wear resistance. Equipped with a dedicated FY200B lubricator, the system ensures uniform and forced lubrication under heavy-load operation, effectively extending the service life of the piston and rotating mechanism.
The entire machine's control system is highly integrated, with all control handles concentrated on the rear cover of the machine head, enabling one-touch operation for "air, water, and linkage." This design not only reduces the labor intensity for workers but also ensures operational flexibility and safety in narrow tunnels or complex mining environments.
Why choose us
Integrated Factory Direct Supply: We possess a complete industrial chain for rock drill machinery, from raw material control to finished product assembly, eliminating all intermediate links to deliver exceptional cost-effectiveness.
Rigorous Quality Control System: Each batch of steel is monitored for its chemical composition in our analytical laboratory. Every single machine must pass a fatigue resistance test before leaving the factory.
Lightning-Fast Delivery: Supported by a 10,000-square-meter smart warehouse, we guarantee dispatch within 24 hours for YT28 wear parts (e.g., spiral rod, rotating sleeve, water needle).

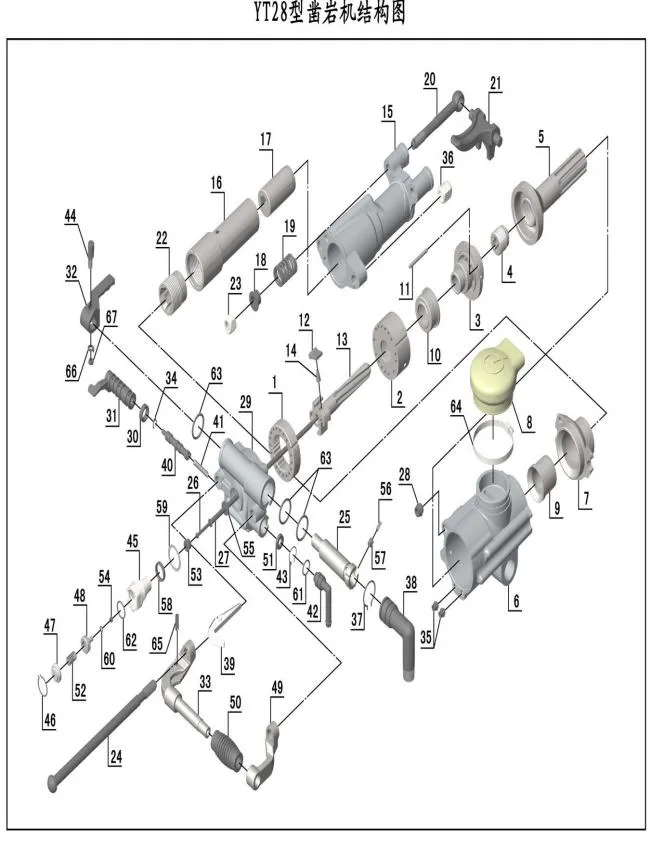

YT28 Rock Drill Section Drawing
FAQ
Question1：What issues should be noted during the use of the YT28 air-leg rock drill?
Answer：Besides observance of the general safety precautions for rock drilling operations, particular attention should be paid to the following:
• The rifle nut and the piston are matched with left-hand threads. Cautions should be taken during assembling and disassembling.
• Before connecting the drill to the air and water supplies, check carefully if the wire clips (37)(43) are entirely and correctly set in the respective semi-circular grooves of the backhead (29). Check frequently the wear on the clips and timely replace the worn-out or broken one or broken one to avoid the shooting out of the swivel or the connector when the air or water is on.
• Before operation, fill the line oiler with lubrication oil to the required level. The drill should not be run without proper lubrication (recommended lube oil N46 and N22, Chinese National Standard GB443-84).
• After operation, first turn off the water, lightly run the drill for a few seconds, blow out the residual water drops to prevent the parts from being corroded.
• If the drill is often used, should maintenance it regularly to ensure the inside parts cleaning. Especially pay attention to change the worn parts and lose efficient parts.
Question2: Common faults and quick troubleshooting methods:
Answer:
• Insufficient impact force: Check if the air pressure is too low, if the air hose is too long or has an undersized inner diameter, or if there is too much lubricant or the wrong type is used.
• Failure to rotate or weak rotation of the drill steel: Check for wear on the spiral nut, ratchet pawl, or related components.
• Frequent damage to the water needle:Check if the center hole of the drill steel is clogged, or if water flow is initiated too early upon startup.
Question3: How does the YT28 perform in high-hardness rock (e.g., granite)?
Answer:The YT28 is an expert in hard rock drilling. In granite with a hardness of F12 and above, it achieves a pure drilling speed of over 250 mm/min, making it a widely recognized preferred model for hard rock excavation.
Question4:How to extend the piston service life during machine operation?
Answer: The key lies in lubrication. We strongly recommend using the genuine FY200B lubricator and ensuring the working pressure does not exceed 0.63 MPa for prolonged periods.
Question5: How are shipping costs and packaging arranged?
Answer: We use export-grade multi-ply plywood cases with built-in anti-rust film encapsulation, ensuring protection against corrosion for over 60 days during maritime transport.
